PRODUCT DETAILS :-

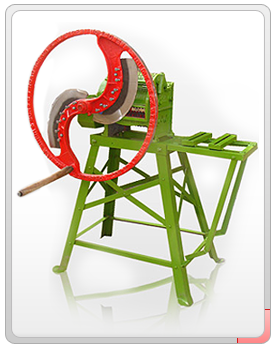

Name  : 2 Roller Mini Side Motor Attachment Chaff Cutter
Model  : Model No.: BS-103
1. This Chaff Cutter is available in Two Models :
a. 2 Feeding rollers, 8" cutting mouth.
b. 3 Feeding rollers, 9" cutting mouth.
2. Wheel Available with this model :
a. Single V-Belt Type (Dia 32"; Weight : 22 Kgs Approx)
b. Wheel with both V-Belt and Flat Belt provision (Dia 32")
3. Double Z (Steel Sealed) bearing are installed in this models.
4. Cutting mouth is grinded on grinding machine for charp edge and easy cutting.
5. Approx. Weight of this model 2R8"is 86 Kgs.
6. Approx. Weight of this model 3R9"is 115 Kgs.
7. Heavy Motor Attachment is installed with adjustable motor base.
NOTE : All Accessories i.e. Parnala, Blades, Handle, etc are not included in weight and these accessories will be charged extra as per customer requirement.


PRODUCT DETAILS :-

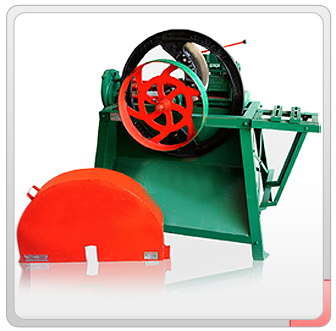

Name  : Automatic Steel Gear Type Chaff Cutter
Model  : Model No.: BS-104
1. This Chaff Cutter is available in Three Models :
A. MODEL NO. BS-104-A (This model is fitted with gear box consisting of tempered steel gears for long life, having facility to reverse the feed for safety and change the size of fodder.)
B. MODEL NO. BS-104-B (This model is fitted with gear box consisting of tempered steel gears for long life, having facility to reverse the feed for safety and change the size of fodder.)
C. MODEL NO. BS-104-C (This model is fitted with gear box consisting of tempered steel gears for long life, having facility to reverse the feed for safety and change the size of fodder.)
2. Power required for these models is 3 HP.
3. Double Z (Steel Sealed) bearing are installed in these model.
4. Cutting mouth width is 9" (228mm) which is grinded on grinding machine for shape edge and easy cutting.
5. Approx. Weight of this model is 200 Kgs.
6. Special Extra Heavy Model is Model is also available with wheels which avails portability of machine.
NOTE : All Accessories i.e. Blades, Handle, V-Belt, Motor Pully, Wheel cover, Tray, Motor Attachement etc are not included in weight and these accessories will be charged extra as per customer requirement.
